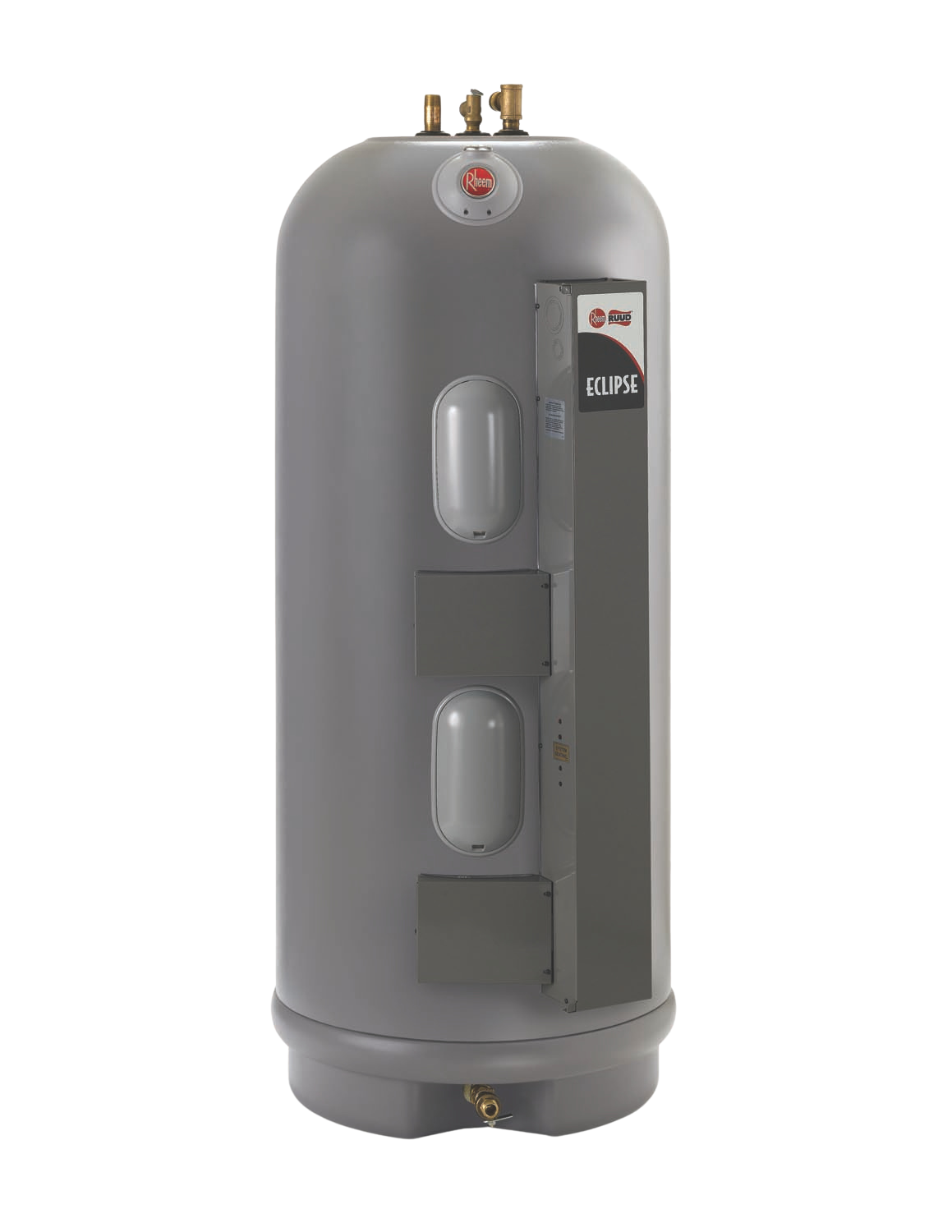

Eclipse

Specification	Eclipse ME85	Eclipse ME105
Capacity	85 gallons	105 gallons
Electric Data
- Input KW	12.4, 18, 24	12.4, 18, 24
- Voltage Options	208, 240, 480 VAC (single/3-phase), 277 VAC (single only)	Same as ME85
- Element Wattages	3100, 4500, 6000 W (per voltage)	Same as ME85
- Element Design	Low watt density (46, 67, 90 W/sq. in.), titanium sheath	Same as ME85
Performance
- Thermal Efficiency	98%	98%
- Recovery Rate	Up to 99 GPH at 100°F rise	Same as ME85
- Max Temperature	170°F	Same as ME85
Dimensions (inches)
- Height	66-1/4	66-1/2
- Width	28-1/4	30-1/4
Weight	170 lbs (ship weight)	185 lbs (ship weight)
Pipe Diameter	1" swivel nuts (water connections)	Same as ME85
Warranty	10-year limited tank warranty	Same as ME85
