SYMPHONY INVERTER CASSETTE SERIES

Specification	18K	24K	36K	42K
Indoor Unit Model	RINC18CHA01	RINC24CHA01	RINC36CHA01	RINC42CHA01

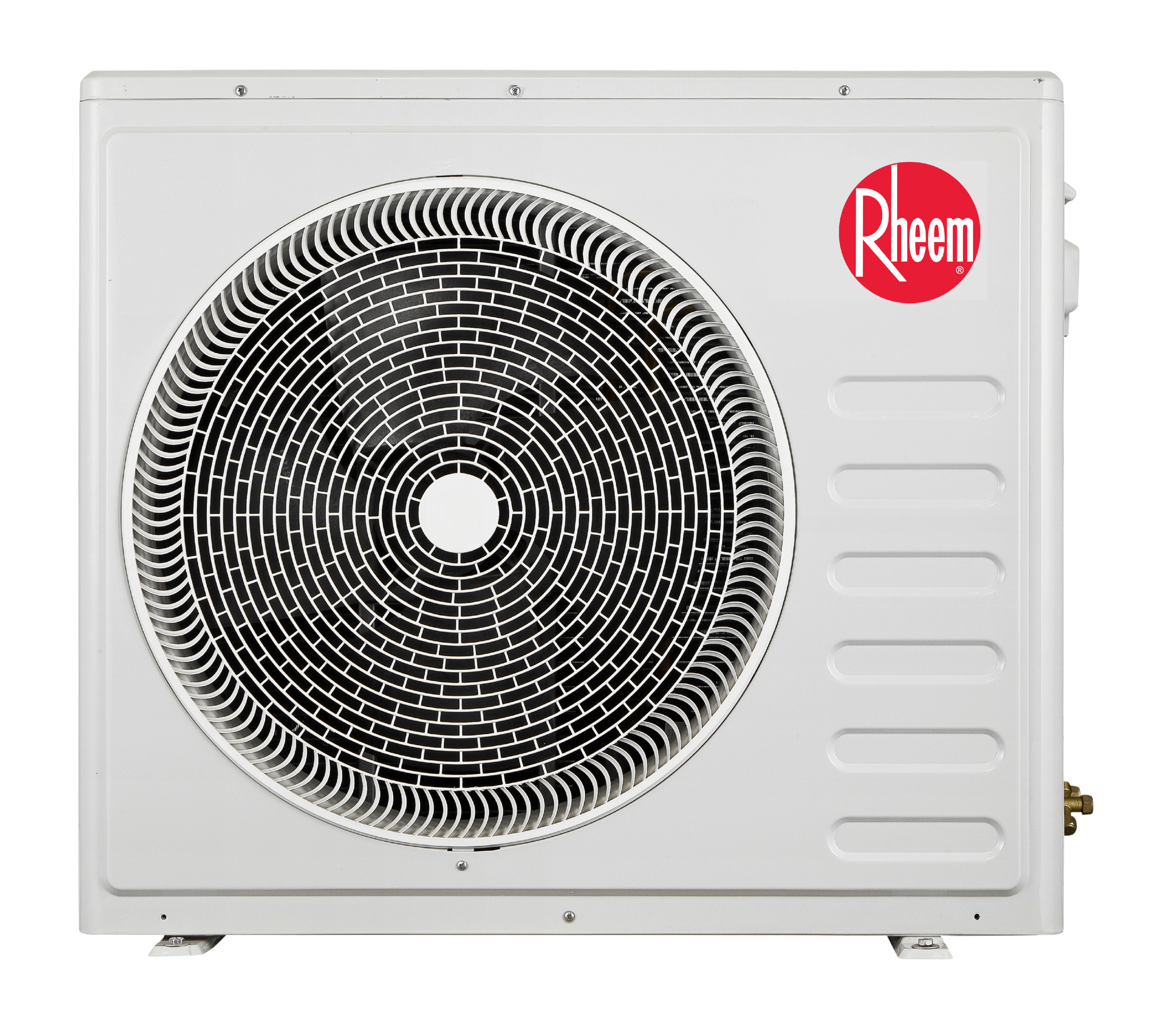

Outdoor Unit Model	RONC18CHA01	RONC24CHA01	RONC36CHA01	RONC42CHA01
Capacity (Cooling)	17,100 BTU/h (5.01 kW)	23,000 BTU/h (6.75 kW)	32,000 BTU/h (9.40 kW)	37,000 BTU/h (10.85 kW)
Capacity (Heating)	5.70 kW	8.10 kW	10.50 kW	13.30 kW
Power Supply	220-240V, 1Ph, 60Hz	220-240V, 1Ph, 60Hz	220-240V, 1Ph, 60Hz	220-240V, 1Ph, 60Hz
Rated Cooling Power	1,402 W	1,885 W	2,634 W	3,045 W
Rated Heating Power	1,541 W	2,250 W	2,838 W	3,800 W
Air Flow Volume (Hi/Mid/Low)	1,100/1,000/350 m³/h	1,500/1,350/1,200 m³/h	2,000/1,700/1,600 m³/h	2,000/1,700/1,600 m³/h
Noise Level (Hi/Mid/Low)	42/39/37 dB(A)	49/44/44 dB(A)	53/50/49 dB(A)	54/50/49 dB(A)
Dimension (WxDxH)	840x840x246 mm	840x840x246 mm	840x840x248 mm	840x840x248 mm
Pipe Diameter (Liquid/Gas)	Φ6.35/Φ12.7 mm	Φ9.52/Φ15.88 mm	Φ9.52/Φ19.05 mm	Φ9.52/Φ19.05 mm
Drainage	Φ34/in (DN20)	Φ34/in (DN20)	Φ34/in (DN20)	Φ34/in (DN20)
